The info you need to find the right fit

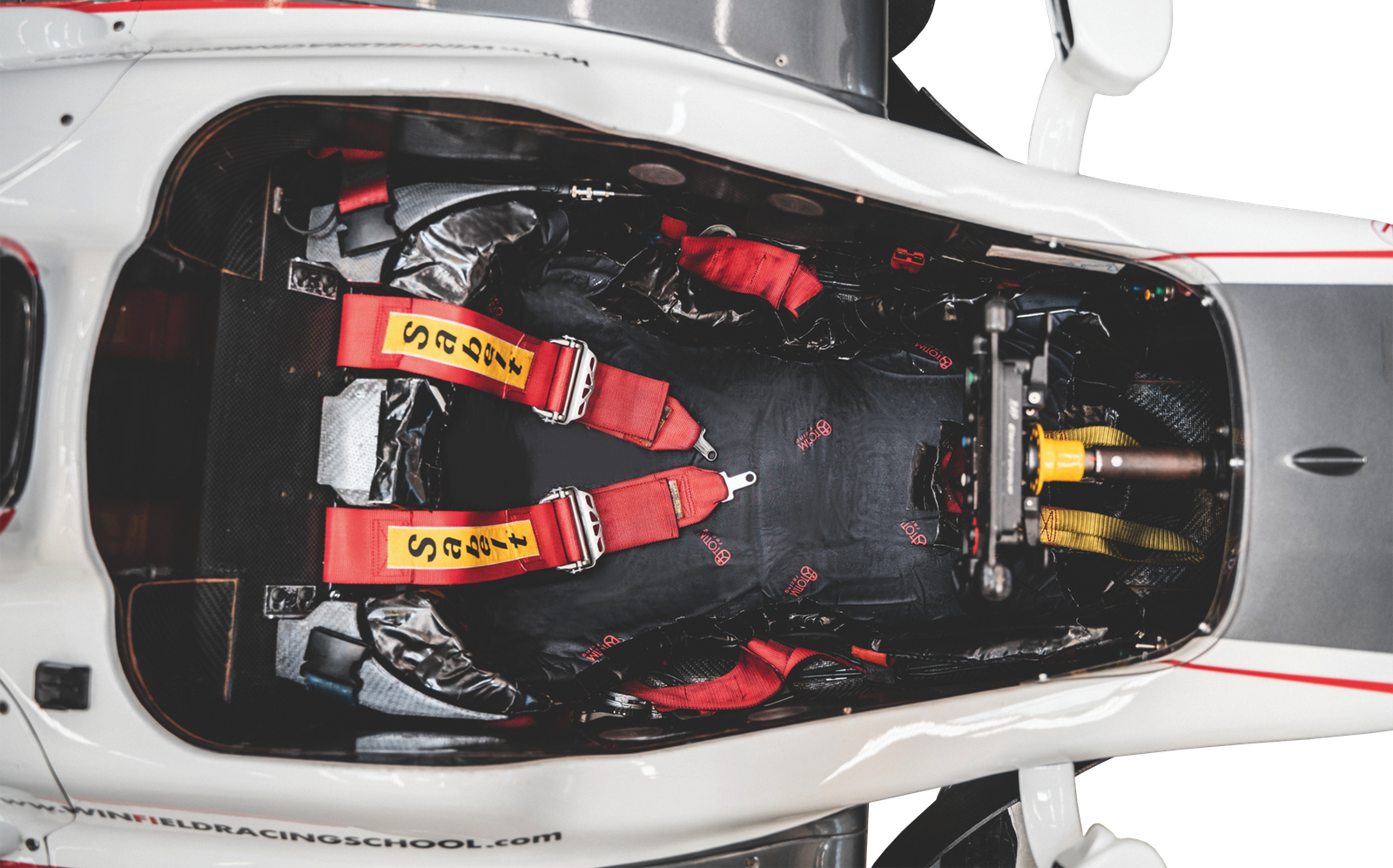

TOTIM racing seat insert product
Why TOTIM

The Advantages
of TOTIM

01
No Chemical Contact
You will never touch the chemicals directly. The fully sealed pouch keeps the two-component foam completely contained until it expands
02
No Mess, No Tools
No measuring, no additional covering required, no specialist equipment needed
03
Fits Only You
The foam adapts perfectly to the driver's body. After 15–20 minutes of expansion and 30 minutes of curing, the insert is ready for use
04
Conforms to FIA Homologation Certification
Foam Flame Resistance Test EN ISO 15025:2003 — Seat fabric burn rate 0 mm/min Test UNI ISO 3795:1992
05
Impact Protection
Polyurethane foam absorbs and disperses impact on contact while delivering full lateral and lumbar support — reducing fatigue and boosting performance
06
Trimmed to Fit
Excess material at the edges can be cut to obtain the exact shape
How to Use

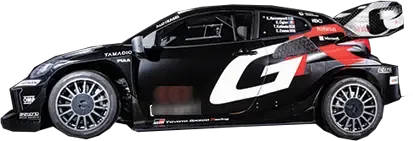

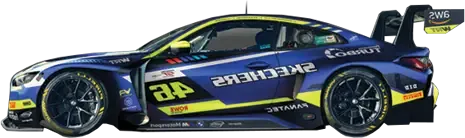

Recommended for
F4, Radical, GT, LMP / Prototypes, SRF, WRC
Seat size 120×90 cm
120×90
cm
T3090 F4 GT seat diagram
T3090 seat insert diagram view 1
T3090 seat insert diagram view 2
T3090 seat insert diagram view 3
T3090 seat insert diagram view 4
T3090 seat insert diagram view 5
T3090 seat insert diagram view 6
T3090 seat insert diagram view 7
Part NumberFoamDriver Size
T3090S
1.7 kgLarge / Medium
T3090M
2.1 kgMedium / Small
T3090L
2.3 kgSmall
T3090LT2*
* With two external pockets for thickness
2.3 kgFor Young / Small

Custom-fit insert for mid-range to high-performance cars. FIA flame-resistance certified. Fully sealed microfiber polyester — no mess, no additional cover required.

Recommended for
LMP3, LMP4, F2, F3, Super Formula, Formula Renault, IndyCar
Seat size 140×100 cm
140×100
cm
T3092 LMP Formula seat diagram
T3092 LMP Formula seat insert view 1
T3092 LMP Formula seat insert view 2
T3092 LMP Formula seat insert view 3
T3092 LMP Formula seat insert view 4
T3092 LMP Formula seat insert view 5
T3092 LMP Formula seat insert view 6
T3092 LMP Formula seat insert view 7
Part NumberFoamDriver Size
T3092
2.3 kgLarge / Medium
T3092L
2.7 kgSmall

Larger insert format for high-cockpit prototype and open-wheel applications. Optimized foam density for maximum lateral support at high-G corners.

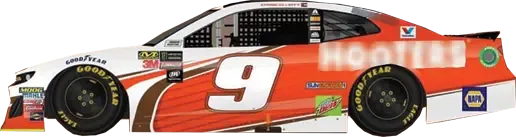

Recommended for
GT, NASCAR, WRC
Seat size 140 LENGHT×100×85 cm — TRAPEZOID
140×100×85
cm
T3093 GT NASCAR WRC trapezoid seat diagram
T3093 GT NASCAR WRC trapezoid seat insert view 1
T3093 GT NASCAR WRC trapezoid seat insert view 2
T3093 GT NASCAR WRC trapezoid seat insert view 3
T3093 GT NASCAR WRC trapezoid seat insert view 4
T3093 GT NASCAR WRC trapezoid seat insert view 5
T3093 GT NASCAR WRC trapezoid seat insert view 6
T3093 GT NASCAR WRC trapezoid seat insert view 7
T3093 GT NASCAR WRC trapezoid seat insert view 8
Part NumberFoamDriver Size
T3093
2.3 kgLarge / Medium
T3093L
2.7 kgSmall

TRAPEZOID format for specific cockpit geometries in GT and touring car classes — 140 LENGHT×100×85 cm.

Recommended for
GT, NASCAR, WRC
Seat size 100×90 cm
100×90
cm
T3094 GT NASCAR WRC seat diagram
T3094 GT NASCAR WRC seat insert view 1
T3094 GT NASCAR WRC seat insert view 2
T3094 GT NASCAR WRC seat insert view 3
T3094 GT NASCAR WRC seat insert view 4
T3094 GT NASCAR WRC seat insert view 5
T3094 GT NASCAR WRC seat insert view 6
T3094 GT NASCAR WRC seat insert view 7
T3094 GT NASCAR WRC seat insert view 8
Part NumberFoamDriver Size
T3094
1.7 kgLarge / Medium
T3094L
2.1 kgSmall

Compact, versatile format suitable for bucket seats in GT and touring car classes. Also available in trapezoid format (T3093) for specific cockpit geometries — 140×100×85 cm.

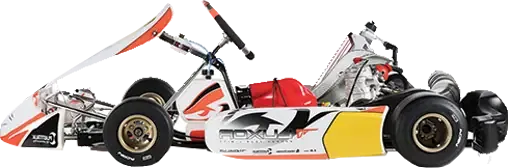

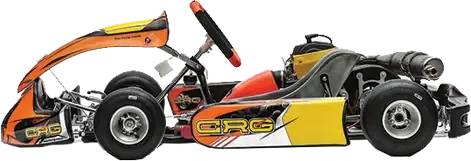

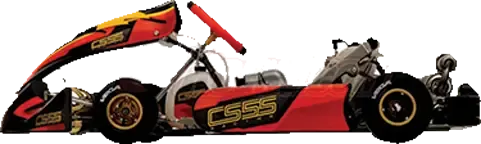

Recommended for
Karting
Seat size 90×90 cm
90×90
cm
Kart seat diagram
T3222 karting seat insert view 1
T3222 karting seat insert view 2
T3222 karting seat insert view 3
T3222 karting seat insert view 4
T3222 karting seat insert view 5
Part NumberFoamDriver Size
T3222S
1.5 kgLarge / Medium
T3222M
1.7 kgSmall

Compact kart seat inserts designed for junior and senior kart chassis. Lightweight foam optimized for kart-specific ergonomics and side-impact protection.

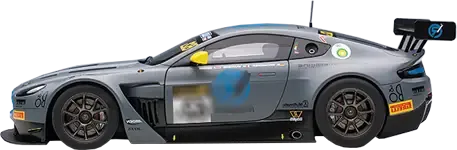

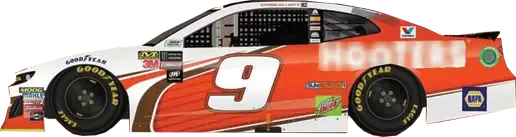

T3096 Series
Mini & Compact Inserts
60×50 cm & 90×50 cm formats
60×50
cm
90×50
cm
T3096 compact seat diagram
T3096 compact seat insert view 1
T3096 compact seat insert view 2
T3096 compact seat insert view 3
T3096 compact seat insert view 4
T3096 compact seat insert view 5
T3096 compact seat insert view 6
Part NumberFoamSize
T3096S
0.6 kg60×50 cm
T3096L
0.9 kg90×50 cm

Ultra-compact insert format for tight cockpits and supplemental lumbar/lateral padding applications. Ideal for junior series and youth drivers.

Custom Made

Want Something
Custom?

We offer fully customized seat solutions tailored to each customer's specific needs. Optimal seat dimensions, personalized fabric with your logo and brand colors.
